Guhring
1/4-28 UNC; UNF Cobalt Tap, TIN - Guhring 9039850063500
MFR# 9039850063500Series 3985
$28.81List $36.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingTIN
Description

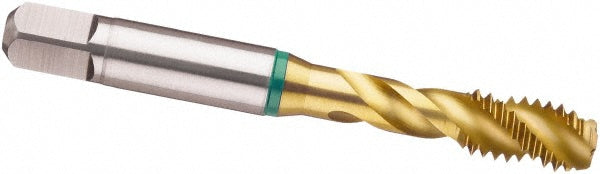

The Guhring 9039850063500 is a 1/4-28 UNC; UNF Cobalt tap with a TIN finish. 3 flutes.
Specifications
Amount oversize0.0050
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fitH11
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Number of flutes3
Overall length in2-1/2
OversizeYes
Shank diameter0.2550
Square size0.1910
Threads per inch28
Thread directionRight Hand
Thread limitH11
Thread size in1/4-28
Thread standardUNC; UNF
