Guhring
Carbide Insert, Grade DK460UF, nano-FIREX - Guhring 9041120162700
MFR# 9041120162700Series 4112
$171.75List $220.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeDK460UF
Coatingnano-FIREX
Description

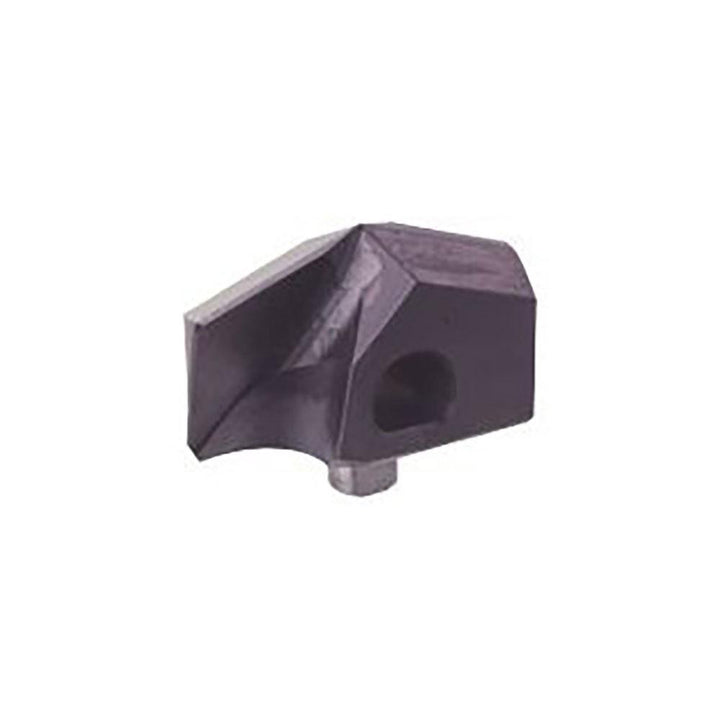

The Guhring 9041120162700 is a carbide indexable insert, grade DK460UF, nano-FIREX coated. Suited for steel.
Specifications
Coating finishnano-FIREX
Coating processPVD
Coolant throughNo
Cutting diameter in41/64
Drill point angle140
Flute length (mm)8.00
Flute typeHelical
Functional length0.3152
Height0.4331
Included angle degree140
Insert geometry2-Facet
Insert holding methodClamp; Screw
Insert seat size160
Manufacturer gradeDK460UF
Material gradeK20/K40
Number of flutes2
Overall length projection0.4334
Point typeTwo Facet
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron
Spiral typeRegular Spiral
Style4112
Tip materialSolid Carbide
Web thinningWeb-Thinned
