Guhring

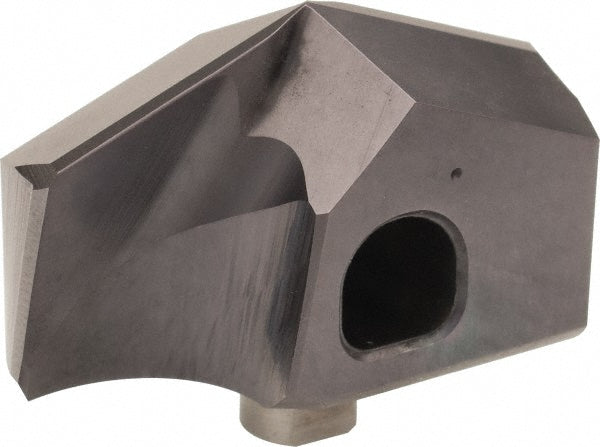

Carbide Insert, Grade K/P, nano-FIREX - Guhring 9041120165000
MFR# 9041120165000Series 4112
$171.75List $220.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeK/P
Coatingnano-FIREX
Description
The Guhring 9041120165000 is a carbide indexable insert, grade K/P, nano-FIREX coated. Suited for steel.
Specifications
Coating finishnano-FIREX
Coating processPVD
Coolant throughNo
Cutting diameter0.6496
Drill point angle140
Flute length (mm)8.00
Flute typeHelical
Functional length0.3152
Height (mm)11.00
Included angle degree140
Insert geometry2-Facet
Insert holding methodClamp; Screw
Insert seat size165
Manufacturer gradeK/P
Number of flutes2
Overall length projection0.4334
Point typeTwo Facet
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron
Spiral typeRegular Spiral
Style4112
Tip materialSolid Carbide
Web thinningWeb-Thinned
