Guhring
Carbide Insert, Grade K - Guhring 9041140230000
MFR# 9041140230000Series 4114
$167.27List $214.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeK
Description

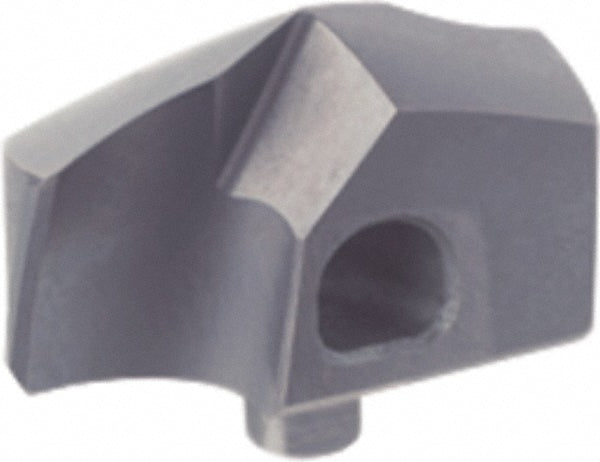

The Guhring 9041140230000 is a carbide indexable insert, grade K. Suited for non-ferrous metal.
Specifications
Coating processBright/Uncoated
Coolant throughNo
Cutting diameter (mm)23.00
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4373
Height (mm)15.00
Included angle degree140
Insert geometryRelieved Cone
Insert holding methodClamp; Screw
Insert seat size230
Manufacturer gradeK
Number of flutes2
Overall length projection0.6028
Point typeTwo Facet
Primary workpiece materialNon-Ferrous Metal
Spiral typeRegular Spiral
Style4114
Tip materialSolid Carbide
Web thinningWeb-Thinned
