Carbide Insert, Grade K/P, nano-A - Guhring 9041150195000
MFR# 9041150195000Series 4115
$188.60List $241.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeK/P
Coatingnano-A
Description

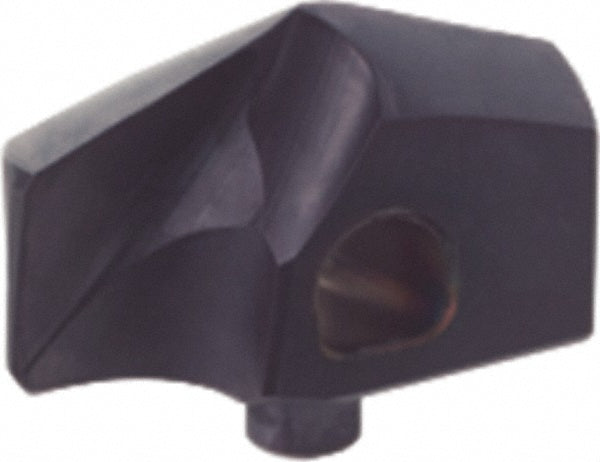

The Guhring 9041150195000 is a carbide indexable insert, grade K/P, nano-A coated. Suited for stainless steel.
Specifications
Coating finishnano-A
Coating processPVD
Coolant throughNo
Cutting diameter0.7677
Drill point angle140
Flute length (mm)9.00
Flute typeHelical
Functional length0.3585
Height (mm)13.00
Included angle degree140
Insert geometryRelieved Cone
Insert holding methodClamp; Screw
Insert seat size195
Manufacturer gradeK/P
Number of flutes2
Overall length projection0.4964
Point typeTwo Facet
Primary workpiece materialStainless Steel
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
Style4115
Tip materialSolid Carbide
Web thinningWeb-Thinned
