Guhring

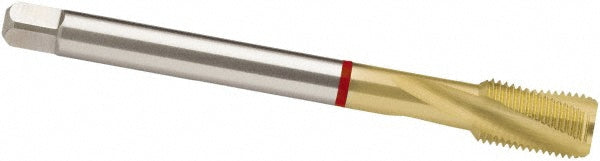

7/16-20 UNF Powdered Metal Tap, TiN - Guhring 9041250111130
MFR# 9041250111130Series 4125
$41.86List $53.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingTiN
Description
The Guhring 9041250111130 is a 7/16-20 UNF Powdered Metal tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialPowdered Metal
Material applicationChilled Cast Iron; Gray Cast Iron; Hardened Steel; Malleable; Special & Super Titanium Alloy; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.3230
Threads per inch20
Thread directionRight Hand
Thread limitH4/H5
Thread size in7/16-20
Thread standardUNF
