Guhring

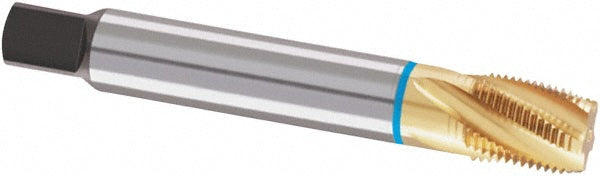

1/8-27 NPTF Cobalt Tap, TiN - Guhring 9041270106200
MFR# 9041270106200Series 4127
$78.11List $100.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/8-27
CoatingTiN
Description
The Guhring 9041270106200 is a 1/8-27 NPTF Cobalt tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Coating finishTiN
Flute directionRight Hand
Helix angle25
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel
Number of flutes4
Overall length (mm)90.00
Projection0.5906
Shank diameter (mm)11.00
Square size (mm)9.00
Threads per inch27.0
Thread size in1/8-27
Thread standardNPTF
