Guhring

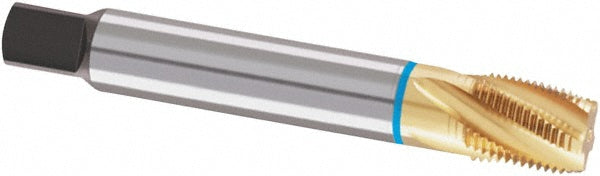

1/4-18 NPTF Cobalt Tap, TiN - Guhring 9041270141400
MFR# 9041270141400Series 4127
$89.53List $114.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size1/4-18
CoatingTiN
Description
The Guhring 9041270141400 is a 1/4-18 NPTF Cobalt tap with a TiN finish. 5 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Coating finishTiN
Flute directionRight Hand
Helix angle25
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel
Number of flutes5
Overall length (mm)100.00
Projection0.8268
Shank diameter (mm)14.00
Square size (mm)11.00
Threads per inch18.0
Thread size in1/4-18
Thread standardNPTF
