Guhring

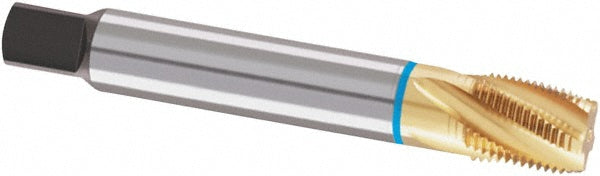

3/8-18 NPTF Cobalt Tap, TiN - Guhring 9041270175700
MFR# 9041270175700Series 4127
$98.08List $125.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size3/8-18
CoatingTiN
Description
The Guhring 9041270175700 is a 3/8-18 NPTF Cobalt tap with a TiN finish. 5 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Coating finishTiN
Flute directionRight Hand
Helix angle25
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel
Number of flutes5
Overall length (mm)110.00
Projection0.8268
Shank diameter (mm)16.00
Square size (mm)12.00
Threads per inch18.0
Thread size in3/8-18
Thread standardNPTF
