Guhring
1/2-14 NPTF Cobalt Tap, TiN - Guhring 9041270219000
MFR# 9041270219000Series 4127
$135.25List $173.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size1/2-14
CoatingTiN
Description

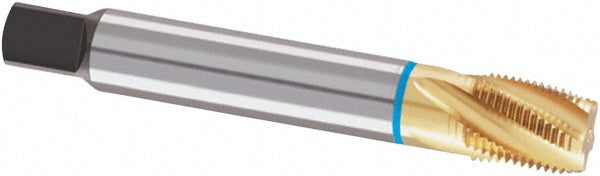

The Guhring 9041270219000 is a 1/2-14 NPTF Cobalt tap with a TiN finish. 5 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Coating finishTiN
Flute directionRight Hand
Helix angle25
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel
Number of flutes5
Overall length (mm)125.00
Projection1.0630
Shank diameter (mm)18.00
Square size (mm)14.50
Threads per inch14.0
Thread size in1/2-14
Thread standardNPTF
