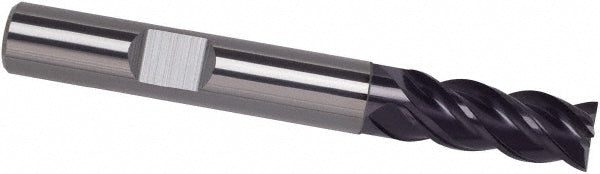

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9042530127000

Guhring

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9042530127000

MFR# 9042530127000Series 4253

$249.67List $320.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingFIREX

Description

The Guhring 9042530127000 is a 1/2 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 3-1/2 length of cut, 6 overall length. Series 4253.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35; 38
Length of cut in3-1/2
Length typeExtra Long
Material gradeProprietary
Maximum helix angle38
Mill diameter in1/2
Mill diameter toleranceh10
Minimum helix angle35
Number of flutes4
Overall length in6
Primary workpiece materialCast Iron; Steel
Secondary workpiece materialHard Material; Stainless Steel
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexNo
