1/2" 4-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 34023

SGS

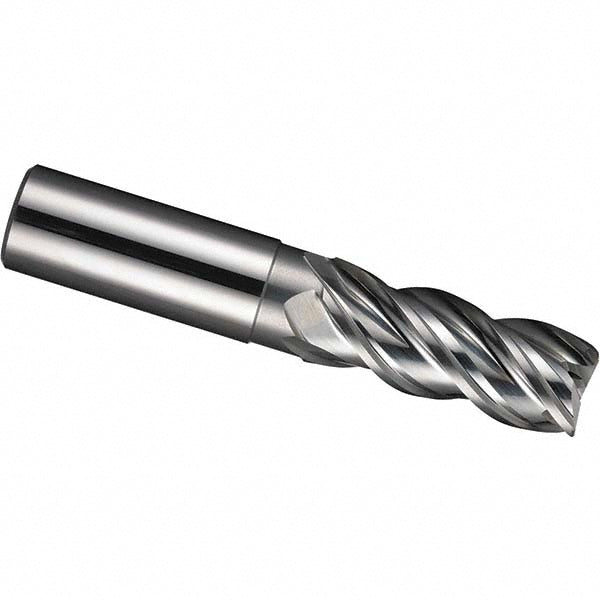

1/2" 4-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 34023

MFR# 34023Series APF

$281.03List $360.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTIB2

Description

The SGS 34023 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. 2 length of cut, 4 overall length. Series APF.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTIB2
Coolant throughYes
Corner radius0.1200
Corner radius tolerance-0.0012 to 0.0012 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut in2
Length typeLong
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance-0.0020 to 0.0004 in
Neck diameter0.4780
Number of flutes4
Overall length in4
Overall length tolerance+0.0600 to -0.0600 in
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Reach length in2-3/8
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
