Guhring

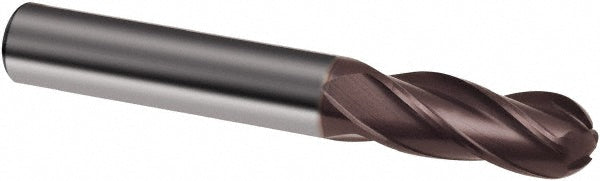

1/4" 4-Flute Solid Carbide Ball End Mill, nano-A - Guhring 9042610063500

MFR# 9042610063500Series 4261

$69.65List $89.34 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

Coatingnano-A

Description

The Guhring 9042610063500 is a 1/4 4-flute Solid Carbide (Ultra Fine Grain) ball end mill with a nano-A finish for longer tool life. Suited for stainless steel, steel. 3/4 length of cut, 2-1/2 overall length. Series 4261.

Specifications

ChipbreakerNo

Coating finishnano-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle36; 38

Helix styleVariable

Length of cut in3/4

Length typeRegular

Material gradeUltra Fine Grain

Mill diameter in1/4

Mill diameter toleranceh10

Number of flutes4

Overall length in2-1/2

Primary workpiece materialStainless Steel; Steel

Secondary workpiece materialCast Iron

Shank diameter in1/4

Shank diameter toleranceh6

Single or double endSingle

Variable helixYes

Variable indexNo
