3/4" 4-Flute Solid Carbide Ball End Mill, nano-A - Guhring 9042610190500

MFR# 9042610190500Series 4261

$440.27List $564.66 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

Coatingnano-A

Description

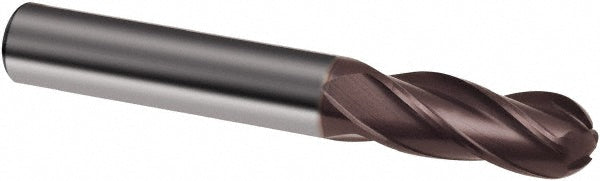

The Guhring 9042610190500 is a 3/4 4-flute Solid Carbide (Ultra Fine Grain) ball end mill with a nano-A finish for longer tool life. Suited for stainless steel, steel. 1-1/2 length of cut, 4 overall length. Series 4261.

Specifications

ChipbreakerNo

Coating finishnano-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle36; 38

Length of cut in1-1/2

Length typeRegular

Material gradeUltra Fine Grain

Mill diameter in3/4

Mill diameter toleranceh10

Number of flutes4

Overall length in4

Primary workpiece materialStainless Steel; Steel

Secondary workpiece materialCast Iron

Shank diameter in3/4

Shank diameter toleranceh6

Single or double endSingle

Variable helixYes

Variable indexNo
