Guhring

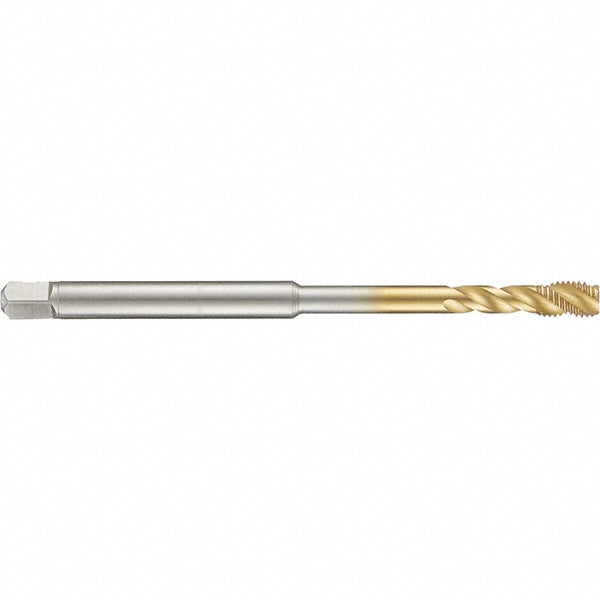

1/4-20 UNC High Speed Steel Tap, TIN - Guhring 9042830063500
MFR# 9042830063500Series 4283
$46.01List $59.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTIN
Description
The Guhring 9042830063500 is a 1/4-20 UNC High Speed Steel tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialHigh Speed Steel
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Stainless Steel; Steel
Neck length in2
Number of flutes3
Overall length in4
OversizeNo
Shank diameter0.2550
Shank length2.0000
Square size0.1910
Tapping depth2.0000
Threads per inch20
Thread directionRight Hand
Thread limitH4; H5
Thread size in1/4-20
Thread standardUNC
