Guhring

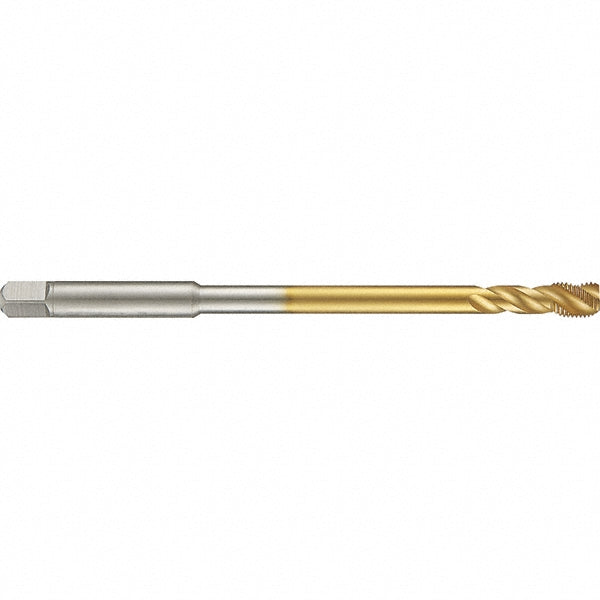

1/4-20 UNC High-Speed Steel Tap, TiN - Guhring 9042870063500
MFR# 9042870063500Series 4287
$46.01List $59.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTiN
Description
The Guhring 9042870063500 is a 1/4-20 UNC High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialHigh-Speed Steel
Material applicationAluminum; Non-Ferrous Metal; Gray Cast Iron; Malleable Iron; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length in6
OversizeNo
Shank diameter0.2550
Shank length2.0000
Square size0.1910
Tapping depth4.0000
Threads per inch20
Thread directionRight Hand
Thread limitH4; H5
Thread size in1/4-20
Thread standardUNC
