Guhring
5/16-18 UNC High Speed Steel Tap, TIN - Guhring 9042870079380
MFR# 9042870079380Series 4287
$49.69List $63.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTIN
Description

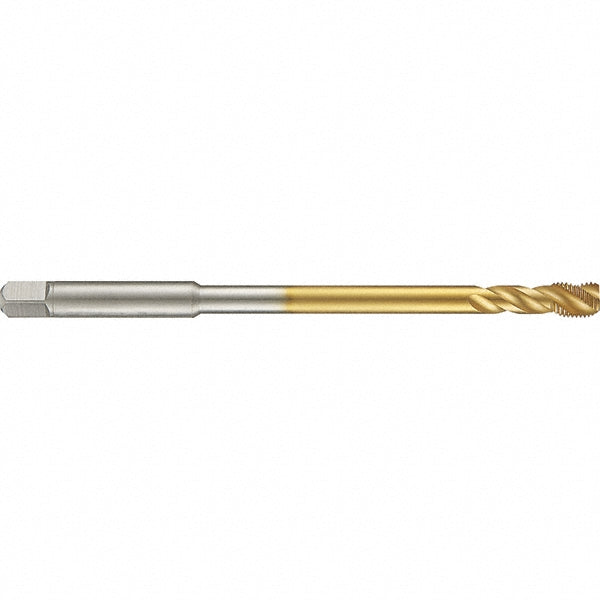

The Guhring 9042870079380 is a 5/16-18 UNC High Speed Steel tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialHigh Speed Steel
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length in6
OversizeNo
Shank diameter0.3180
Shank length2.0000
Square size0.2380
Tapping depth4.0000
Threads per inch18
Thread directionRight Hand
Thread limitH4; H5
Thread size in5/16-18
Thread standardUNC
