Guhring
3/8-16 UNC High Speed Steel Tap, TIN - Guhring 9042870095250
MFR# 9042870095250Series 4287
$57.36List $73.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTIN
Description

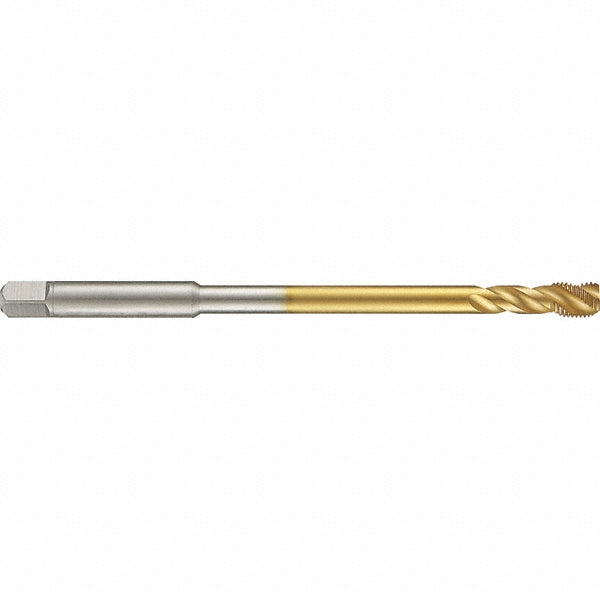

The Guhring 9042870095250 is a 3/8-16 UNC High Speed Steel tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialHigh Speed Steel
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length in6
OversizeNo
Shank diameter0.3810
Shank length2.0000
Square size0.2860
Tapping depth4.0000
Threads per inch16
Thread directionRight Hand
Thread limitH5; H6
Thread size in3/8-16
Thread standardUNC
