Guhring

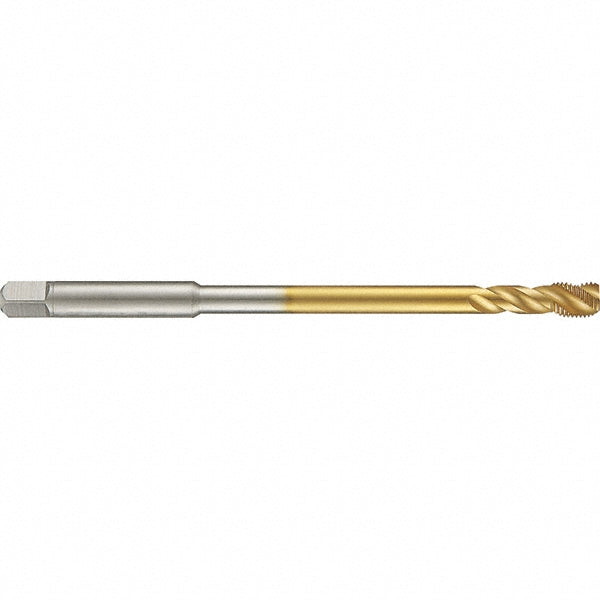

1/2-13 UNC High-Speed Steel Tap, TiN - Guhring 9042870127000
MFR# 9042870127000Series 4287
$77.57List $99.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTiN
Description
The Guhring 9042870127000 is a 1/2-13 UNC High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialHigh-Speed Steel
Material applicationAluminum; Non-Ferrous Metal; Gray Cast Iron; Malleable Iron; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length in6
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch13
Thread directionRight Hand
Thread limitH5; H6
Thread size in1/2-13
Thread standardUNC
