Guhring

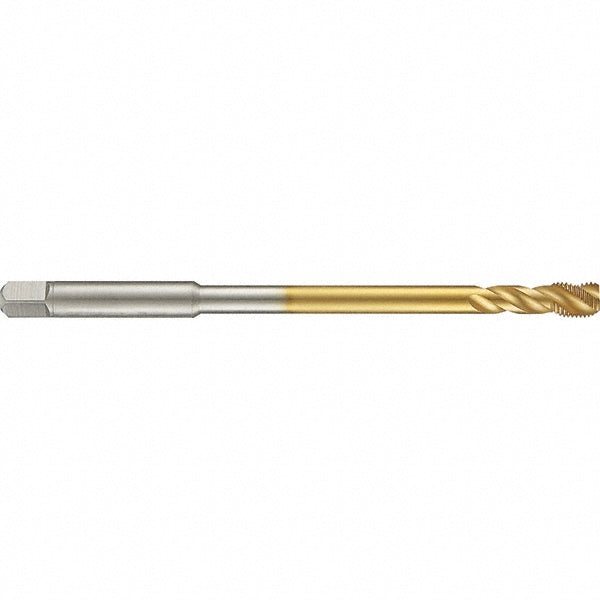

3/4-10 UNC High Speed Steel Tap, TIN - Guhring 9042870190500
MFR# 9042870190500Series 4287
$92.85List $119.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingTIN
Description
The Guhring 9042870190500 is a 3/4-10 UNC High Speed Steel tap with a TIN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialHigh Speed Steel
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Stainless Steel; Steel
Number of flutes4
Overall length in6
OversizeNo
Shank diameter0.5900
Square size0.4420
Threads per inch10
Thread directionRight Hand
Thread limitH5; H6
Thread size in3/4-10
Thread standardUNC
