Guhring

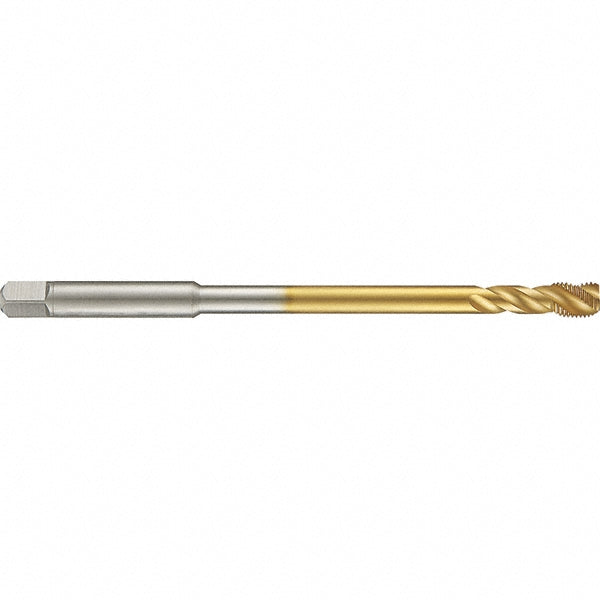

3/8-24 UNF High-Speed Steel Tap, TiN - Guhring 9042880095250
MFR# 9042880095250Series 4288
$62.34List $79.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingTiN
Description
The Guhring 9042880095250 is a 3/8-24 UNF High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialHigh-Speed Steel
Material applicationAluminum; Non-Ferrous Metal; Gray Cast Iron; Malleable Iron; Spheroidal Iron; Stainless Steel; Steel
Neck length in4
Number of flutes3
Overall length in6
OversizeNo
Shank diameter0.3810
Shank length2.0000
Square size0.2860
Tapping depth4.0000
Threads per inch24
Thread directionRight Hand
Thread limitH3; H4
Thread size in3/8-24
Thread standardUNF
