Guhring

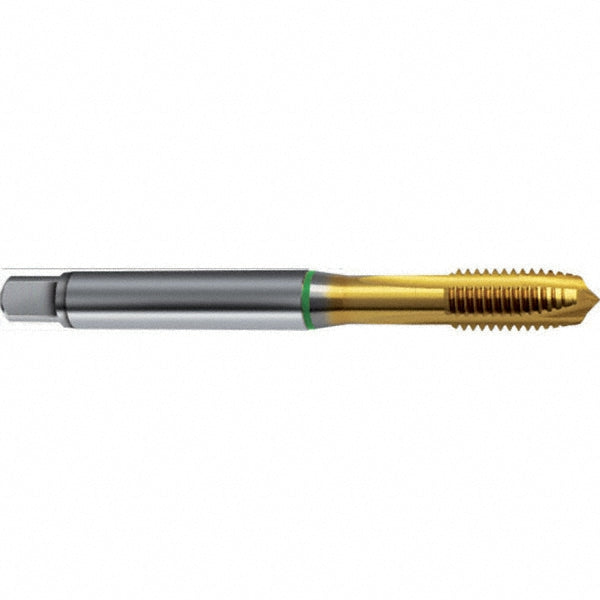

M8 x 1.25 Metric High Speed Steel Tap, TIN - Guhring 9043310080000
MFR# 9043310080000Series 4331
$31.03List $39.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTIN
Description
The Guhring 9043310080000 is a Metric High Speed Steel tap with a TIN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6H
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
MaterialHigh Speed Steel
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Stainless Steel; Steel
Neck length (mm)30.00
Number of flutes3
Overall length (mm)90.00
OversizeYes
Shank diameter (mm)8.00
Shank length (mm)55.00
Square size (mm)4.90
Tapping depth (mm)35.00
Thread directionRight Hand
Thread limitD11
Thread pitch (mm)1.25
Thread size (mm)M8 x 1.25
Thread standardMetric
