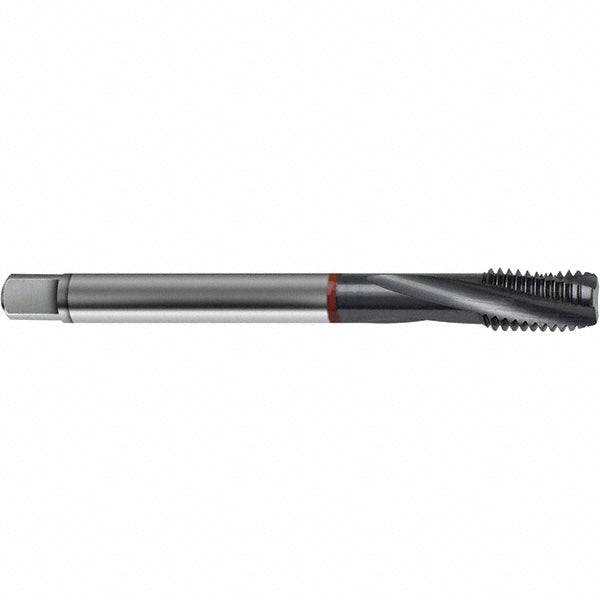

#4-40 UNC High-Speed Steel Tap, TiCN - Guhring 9043730028450
MFR# 9043730028450Series 4373
$39.11List $50.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-40
CoatingTiCN
Description
The Guhring 9043730028450 is a #4-40 UNC High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2BX
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialHigh-Speed Steel
Material applicationHardened Steel
Neck length0.7087
Number of flutes3
Overall length2.2047
OversizeNo
Shank diameter0.1410
Shank length1.4960
Square size0.1100
Tapping depth0.7090
Threads per inch40
Thread directionRight Hand
Thread limitH3; H4
Thread size in#4-40
Thread standardUNC
