Guhring

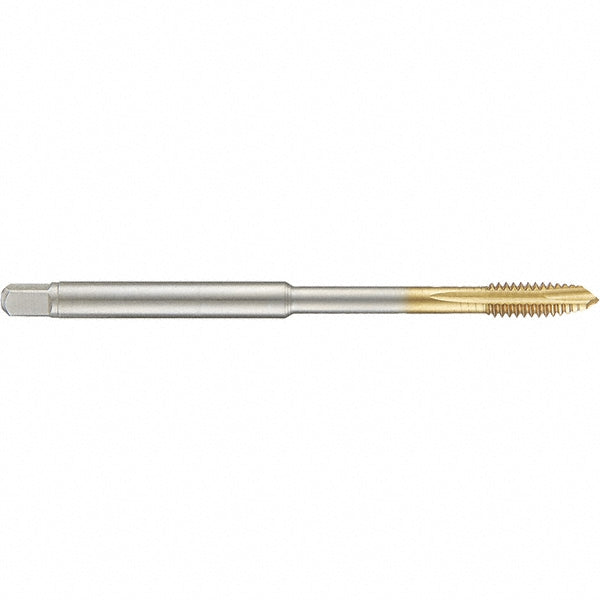

1/4-20 UNC High Speed Steel Tap, TiN - Guhring 9043900063500
MFR# 9043900063500Series 4390
$34.54List $44.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTiN
Description
The Guhring 9043900063500 is a 1/4-20 UNC High Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Neck length in2
Number of flutes3
Overall length4.0000
Shank diameter0.2550
Threads per inch20
Thread directionRight Hand
Thread limitH4/H5
Thread size in1/4-20
Thread standardUNC
