Guhring

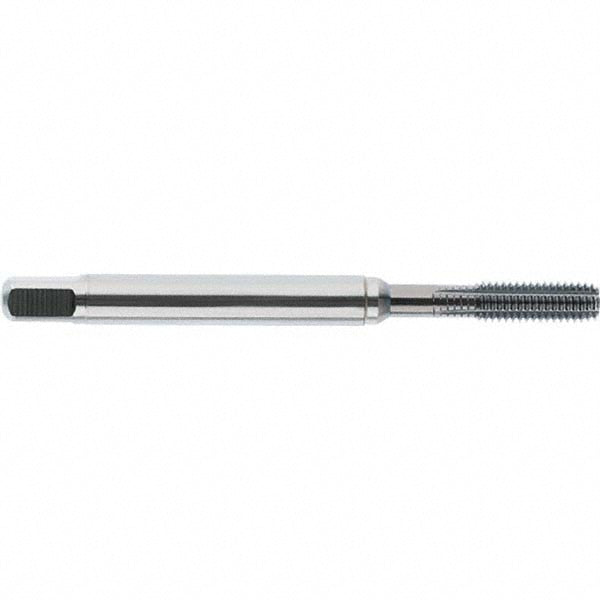

M1x0.25 Metric High-Speed Steel-E-PM Tap, TiCN - Guhring 9044870010000
MFR# 9044870010000Series 4487
$48.96List $62.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The Guhring 9044870010000 is a Metric High-Speed Steel-E-PM tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloy
Material application codeP; M; K; N; S
Oil grooves0
Overall length1.5748
Shank diameter0.0984
Square size0.0827
Thread directionRight Hand
Thread length0.1575
Thread limitD4; D5
Thread size (mm)M1x0.25
Thread standardMetric
Trade namePionex
