Guhring

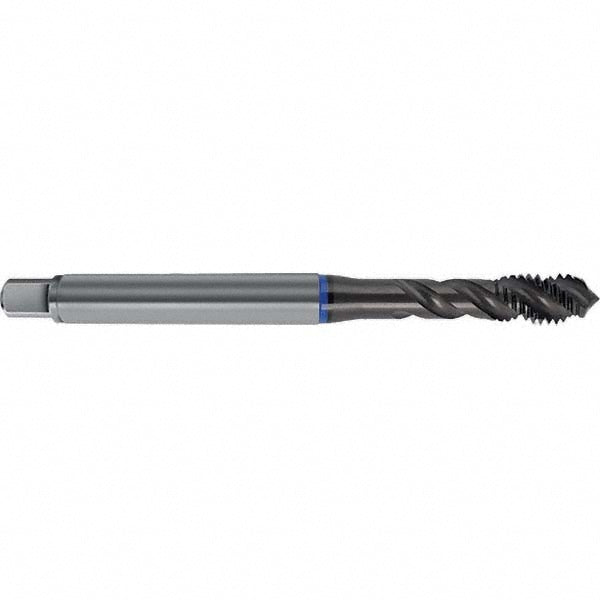

M4x0.70 Metric Tap, TiAlN - Guhring 9046270040000
MFR# 9046270040000Series 4627
$48.02List $61.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiAlN
Description
The Guhring 9046270040000 is a Metric tap with a TiAlN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferSemi-Bottoming
Class of fit6H + 0.1
Coating finishTiAlN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Material applicationAluminum; Cast Iron; Nickel Titanium Alloy; Stainless Steel; Steel
Neck length (mm)21.00
Number of flutes3
Overall length (mm)63.00
OversizeYes
Shank diameter (mm)4.50
Square size (mm)3.40
Tapping depth (mm)21.00
Thread directionRight Hand
Thread length (mm)7.50
Thread limitD11; D12
Thread pitch (mm)0.70
Thread size (mm)M4x0.70
Thread standardMetric
