Guhring

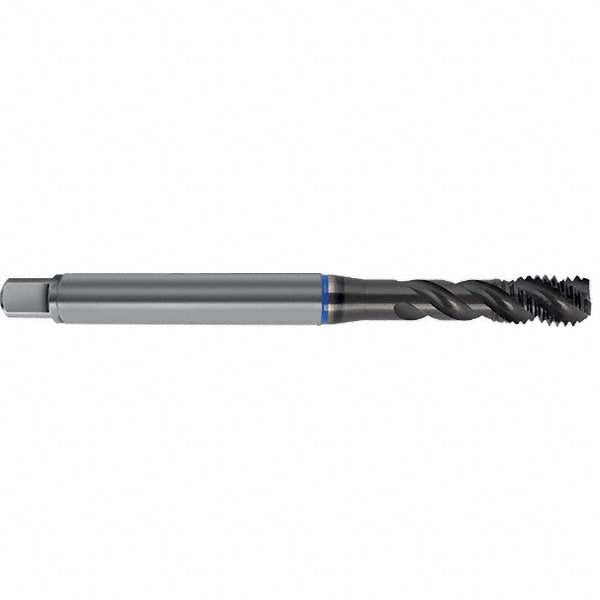

M2.5 x 0.45 Metric Tap, TiAlN - Guhring 9046300025000
MFR# 9046300025000Series 4630
$42.45List $54.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiAlN
Description
The Guhring 9046300025000 is a Metric tap with a TiAlN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit6HX
Coating finishTiAlN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Material applicationAluminum; Cast Iron; Nickel-Titanium Alloy; Stainless Steel; Steel
Neck length (mm)14.50
Number of flutes3
Overall length (mm)50.00
OversizeNo
Shank diameter (mm)2.80
Square size (mm)2.10
Tapping depth (mm)14.50
Thread directionRight Hand
Thread length (mm)5.00
Thread limitD3; D4
Thread pitch (mm)0.45
Thread size (mm)M2.5 x 0.45
Thread standardMetric
