Guhring
#5-40 UNC Cobalt Tap, Ignator - Guhring 9048812031750
MFR# 9048812031750Series 4881
$21.14List $27.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#5-40
CoatingIgnator
Description

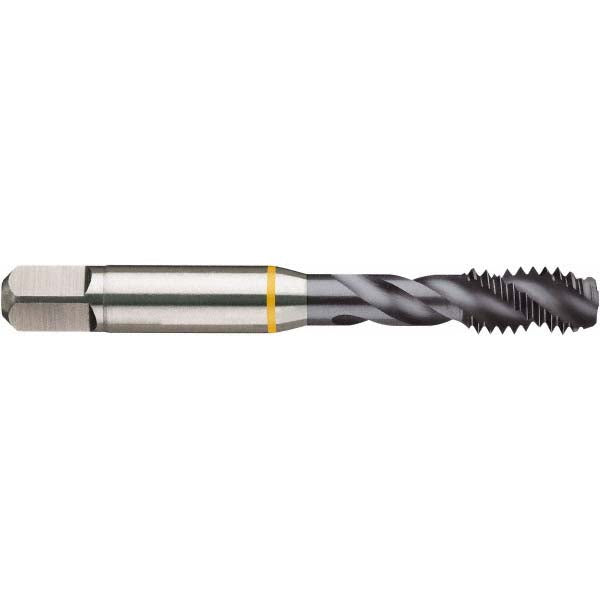

The Guhring 9048812031750 is a #5-40 UNC Cobalt tap with a Ignator finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishIgnator
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case-Hardened Steel; Cast Iron; Ductile Iron; Free-Cutting Steel; Heat-Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.4340
Number of flutes3
Overall length1.9410
OversizeNo
Shank diameter0.1410
Square size0.1100
Tapping depth0.7090
Threads per inch40
Thread directionRight Hand
Thread length0.2750
Thread limitH2
Thread pitch0.0250
Thread size in#5-40
Thread standardUNC
