1/4-20 UNC Cobalt Tap, Ignator - Guhring 9048813063500

Guhring

1/4-20 UNC Cobalt Tap, Ignator - Guhring 9048813063500

MFR# 9048813063500Series 4881

$18.64List $23.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingIgnator

Description

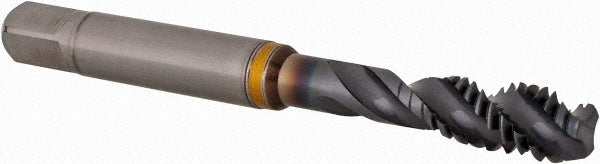

The Guhring 9048813063500 is a 1/4-20 UNC Cobalt tap with a Ignator finish. 3 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishIgnator
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case-Hardened Steel; Cast Iron; Ductile Iron; Free-Cutting Steel; Heat-Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.6700
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size0.1910
Tapping depth1.1810
Threads per inch20
Thread directionRight Hand
Thread length0.5110
Thread limitH3
Thread pitch0.0500
Thread size in1/4-20
Thread standardUNC
