3/8-16 UNC Cobalt Tap, Ignator - Guhring 9048813095250

Guhring

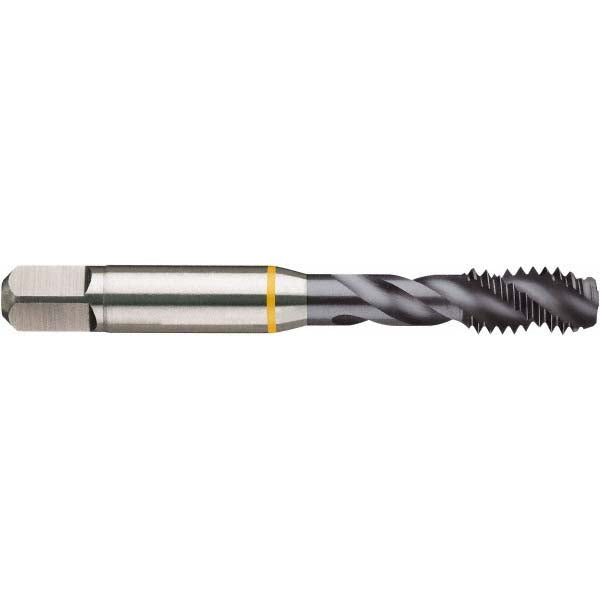

3/8-16 UNC Cobalt Tap, Ignator - Guhring 9048813095250

MFR# 9048813095250Series 4881

$25.30List $31.58 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingIgnator

Description

The Guhring 9048813095250 is a 3/8-16 UNC Cobalt tap with a Ignator finish. 3 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishIgnator
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case-Hardened Steel; Cast Iron; Ductile Iron; Free-Cutting Steel; Heat-Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.8270
Number of flutes3
Overall length2.9410
OversizeNo
Shank diameter0.3810
Square size0.2860
Tapping depth1.4560
Threads per inch16
Thread directionRight Hand
Thread length0.6290
Thread limitH3
Thread pitch0.0625
Thread size in3/8-16
Thread standardUNC
