Guhring

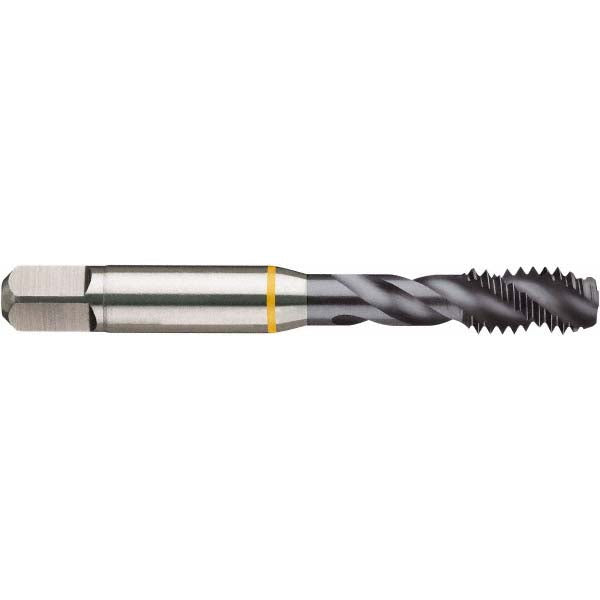

3/8-24 UNF Cobalt Tap, Ignator - Guhring 9048823095250
MFR# 9048823095250Series 4882
$26.65List $34.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingIgnator
Description
The Guhring 9048823095250 is a 3/8-24 UNF Cobalt tap with a Ignator finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishIgnator
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case-Hardened Steel; Cast Iron; Ductile Iron; Free-Cutting Steel; Heat-Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length1.0230
Number of flutes3
Overall length2.9410
OversizeNo
Shank diameter0.3810
Square size0.2860
Tapping depth1.4560
Threads per inch24
Thread directionRight Hand
Thread length0.4330
Thread limitH3
Thread pitch0.0417
Thread size in3/8-24
Thread standardUNF
