Guhring

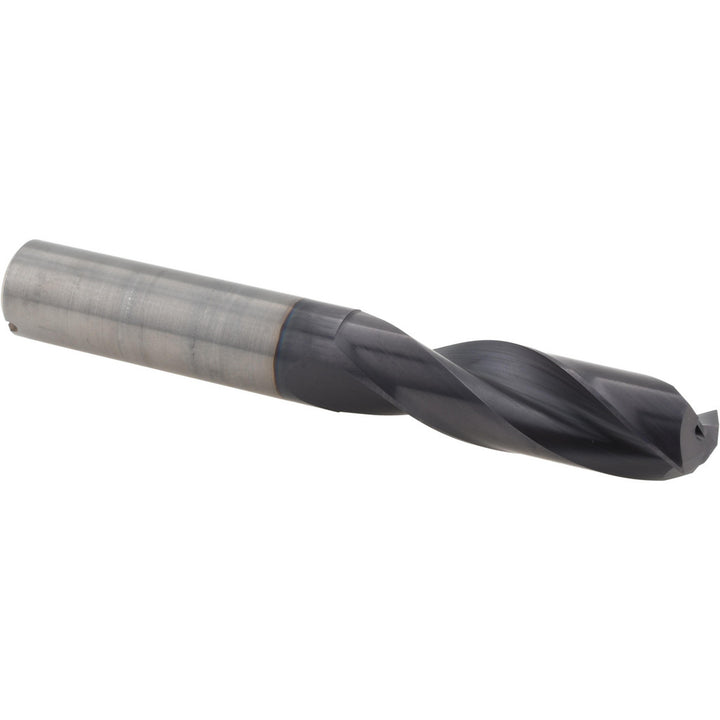

0.6299" Solid Carbide Drill Bit, Multi-layer, 140° point - Guhring 9055100160000
MFR# 9055100160000Series 5510
$552.16List $708.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Guhring 9055100160000 is a 0.6299" Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for brass, cast iron, hardened materials, nickel alloy, stainless steel, steel, titanium alloy. Series 5510.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size0.6299
Drill bit size range0.6000+
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)65.00
Flute typeRegular Spiral
Material gradeSubmicron
Maximum drilling depth (mm)62.00
Number of flutes2
Overall length4.5276
Point type4 Facet
Primary workpiece materialBrass; Cast Iron; Hardened Materials; Nickel Alloy; Stainless Steel; Steel; Titanium Alloy
Shank diameter0.6299
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
