Guhring

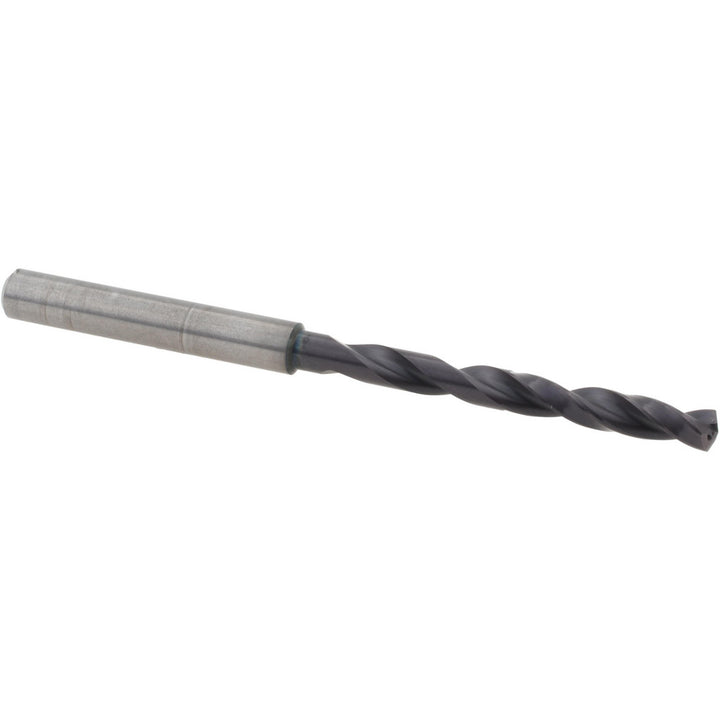

0.1811" Solid Carbide Drill Bit, FIREX, 140° point - Guhring 9055120046000
MFR# 9055120046000Series 5512
$240.40List $308.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingFIREX
Description
The Guhring 9055120046000 is a 0.1811" Solid Carbide drill bit with a FIREX finish, 140° point. Series 5512.
Specifications
Coating finishFIREX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit gradeHigh Performance
Drill bit size0.1811
Drill point angle degrees140
Flute length (mm)45.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationBrass; Cast Iron; Hard Material; Nickel Alloy; Stainless Steel; Steel; Titanium Alloy
Material gradeSubmicron
Maximum drilling depth1.5000
Overall length (mm)85
Point typeSU
Shank diameter (mm)6
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537
Threaded shankNo
Tool applicationSelf-Centering
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
