0.2047" Solid Carbide Drill Bit, FIREX, 140° point - Guhring 9055120052000
MFR# 9055120052000Series 5512
$229.10List $293.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingFIREX
Description

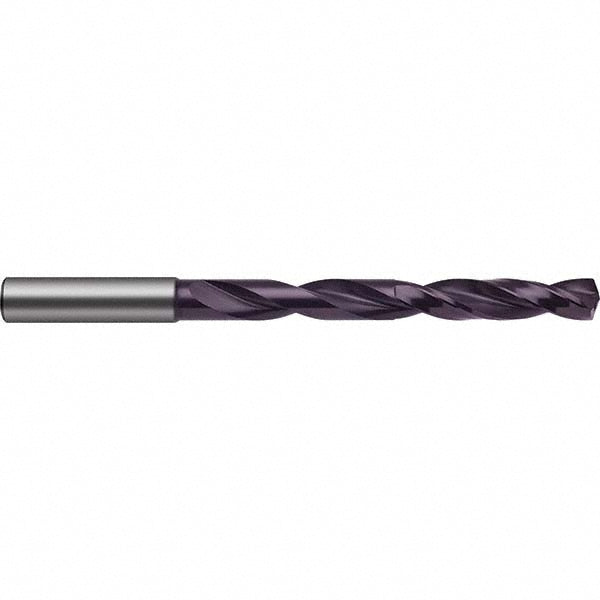

The Guhring 9055120052000 is a 0.2047" Solid Carbide drill bit with a FIREX finish, 140° point. Series 5512.
Specifications
Coating finishFIREX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit size0.2047
Drill point angle degrees140
Flute length1.9685
Flute length x diameter ratio7xD
Flute typeSpiral
Material gradeDK460UF
Maximum drilling depth1.6610
Overall length3-2/4
Point typeSU
Shank diameter0.2362
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537
Threaded shankNo
Tool applicationSelf-Centering
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
