Guhring

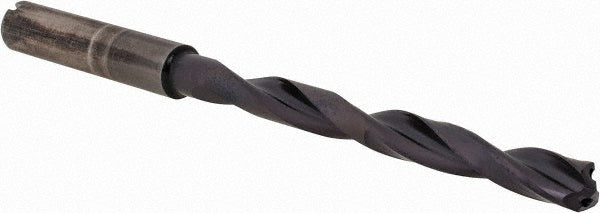

0.2441" Solid Carbide Drill Bit, Coated, 140° point - Guhring 9055120062000
MFR# 9055120062000Series 5512
$251.85List $323.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The Guhring 9055120062000 is a 0.2441" Solid Carbide drill bit with a Coated finish, 140° point. Series 5512.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit size0.2441
Drill point angle degrees140
Flute length2.5984
Flute length x diameter ratio7xD
Flute typeSpiral
Material gradeDK460UF
Maximum drilling depth2.2320
Overall length (mm)106.00
Point typeSU
Shank diameter0.3150
Shank length (mm)36.00
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537
Threaded shankNo
Tool applicationSelf-Centering
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
