Guhring

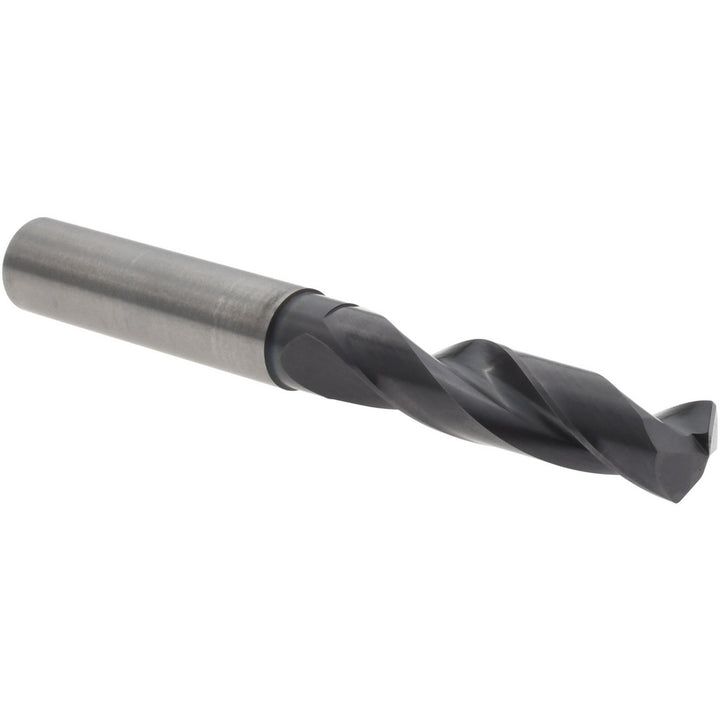

0.4409" Solid Carbide Drill Bit, FIREX, 140° point - Guhring 9055140112000
MFR# 9055140112000Series 5514
$220.07List $282.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingFIREX
Description
The Guhring 9055140112000 is a 0.4409" Solid Carbide drill bit with a FIREX finish, 140° point. Suited for brass, cast iron, hardened materials, nickel alloy, stainless steel, steel, titanium alloy. Series 5514.
Specifications
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit size0.4409
Drill bit size range0.4000 to 0.4500
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)55.00
Flute typeSpiral
Material gradeSubmicron
Overall length4.0157
Point typeSU
Primary workpiece materialBrass; Cast Iron; Hardened Materials; Nickel Alloy; Stainless Steel; Steel; Titanium Alloy
Shank diameter0.4724
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
