Guhring

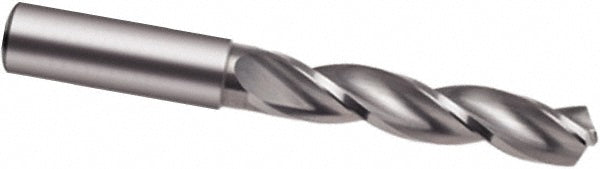

0.4646" Solid Carbide Drill Bit, 130° point - Guhring 9055180118000
MFR# 9055180118000
$179.35List $230.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9055180118000 is a 0.4646" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.4646
Drill bit size range0.4000 - 0.5000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length2.7953
Flute typeRegular Spiral
Number of flutes3
Overall length4.6457
Point typeProprietary
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)12
Specification designationDIN
Spiral typeRegular
Web thinningWeb-Thinned
