Guhring

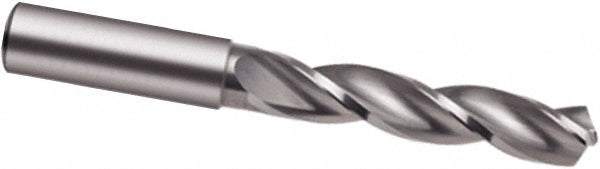

0.6299" Solid Carbide Drill Bit, 130° point - Guhring 9055180160000
MFR# 9055180160000
$405.31List $519.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Guhring 9055180160000 is a 0.6299" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.6299
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length3.2677
Flute typeRegular Spiral
Number of flutes3
Overall length5.2362
Point typeProprietary
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)16
Specification designationDIN
Spiral typeRegular
Web thinningWeb-Thinned
