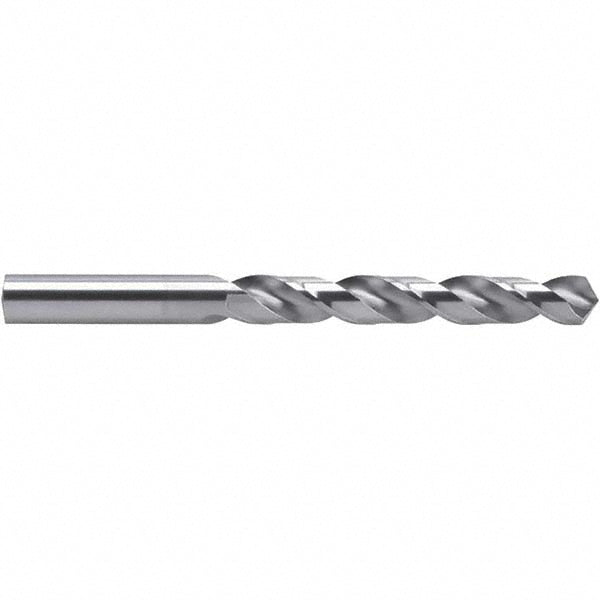

#48 Cobalt Drill Bit, 118° point - Guhring 9055230019300
MFR# 9055230019300
$4.34List $5.56
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Guhring 9055230019300 is a #48 Cobalt drill bit, 118° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit materialCobalt
Drill bit size0.0760
Drill bit size range0.0500 - 0.1000
Drill bit size wire#48
Drill point angle degrees118
Flute by diameter ratio5xD
Flute typeSpiral
Material gradeM35
Point typeFour Facet; Split
Shank diameter (mm)1.93
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
