Guhring

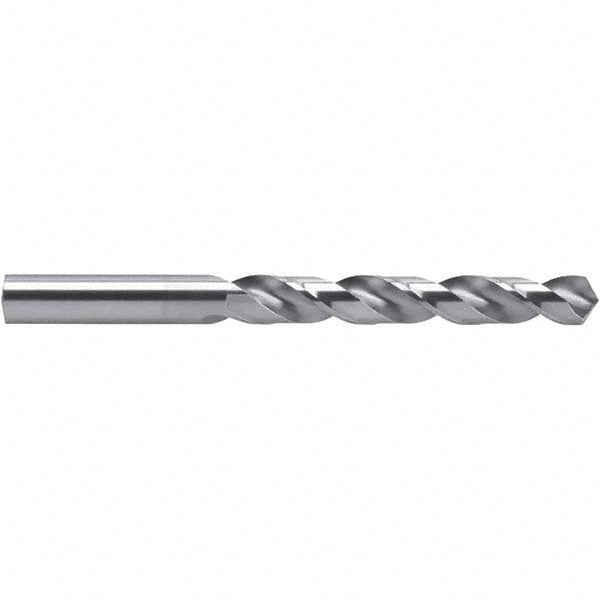

#46 Cobalt Drill Bit, 118° point - Guhring 9055230020600
MFR# 9055230020600Series 5523
$4.34List $5.56
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055230020600 is a #46 Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit materialCobalt
Drill bit size0.0810
Drill bit size range0.0500 - 0.1000
Drill bit size wire#46
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)24.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth0.8230
Number of flutes2
Overall length (mm)49.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter (mm)2.06
Shank length (mm)25.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
