Guhring

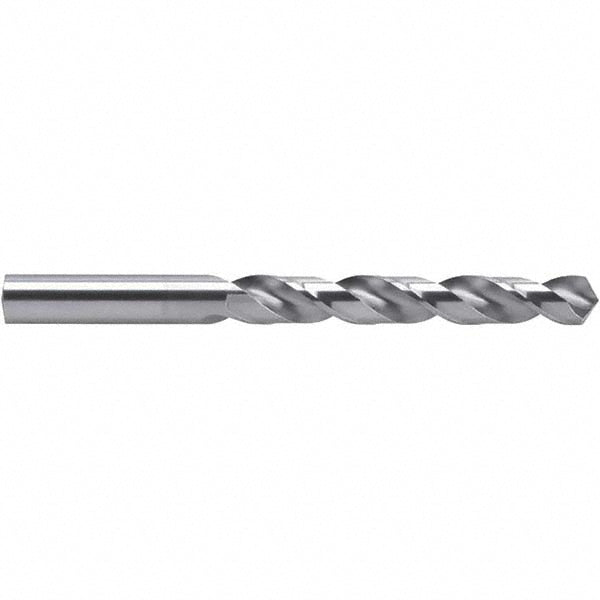

0.0866" Cobalt Drill Bit, 118° point - Guhring 9055230022000
MFR# 9055230022000
$4.49List $5.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Guhring 9055230022000 is a 0.0866" Cobalt drill bit, 118° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit materialCobalt
Drill bit size0.0866
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)27.00
Flute typeSpiral
Material gradeM35
Overall length (mm)53.00
Point typeFour Facet; Split
Shank diameter0.0866
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
