Guhring

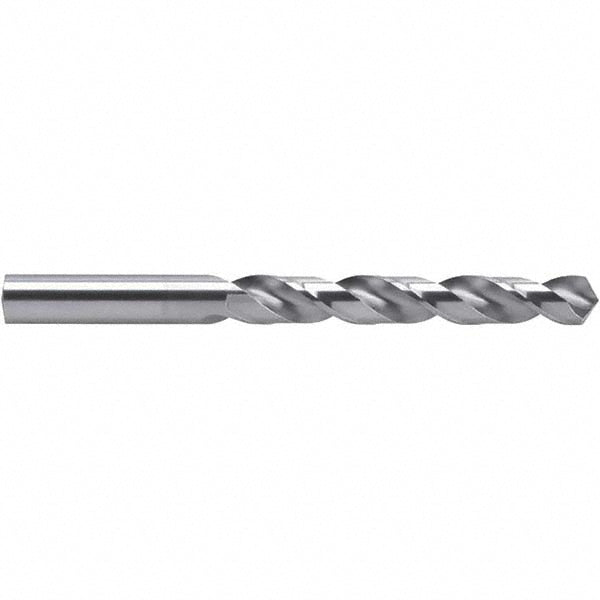

0.1260" Cobalt Drill Bit, 118° point - Guhring 9055230032000
MFR# 9055230032000Series 5523
$5.25List $6.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055230032000 is a 0.1260" Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit materialCobalt
Drill bit size0.1260
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)36.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.2280
Number of flutes2
Overall length (mm)65.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter0.1260
Shank length (mm)29.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
