Guhring

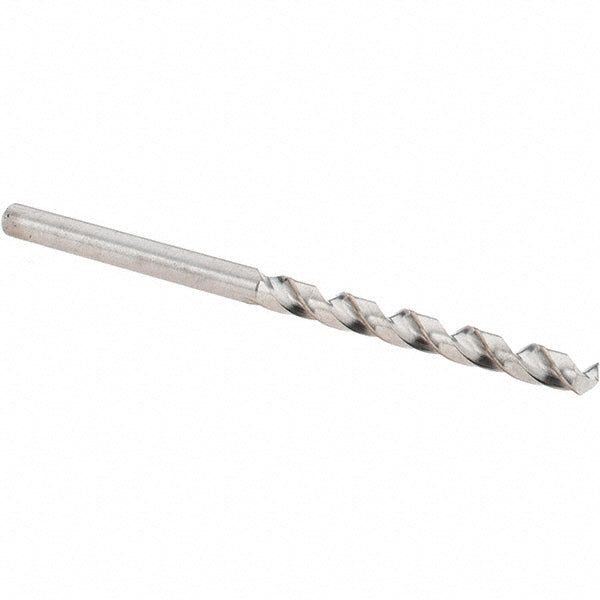

#29 Cobalt Drill Bit, 118° point - Guhring 9055230034500
MFR# 9055230034500Series 5523
$4.52List $5.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055230034500 is a #29 Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialCobalt
Drill bit size0.1360
Drill bit size range0.1000 - 0.1500
Drill bit size wire#29
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)39.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.3320
Number of flutes2
Overall length (mm)70.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter (mm)3.45
Shank length (mm)31.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
