Guhring

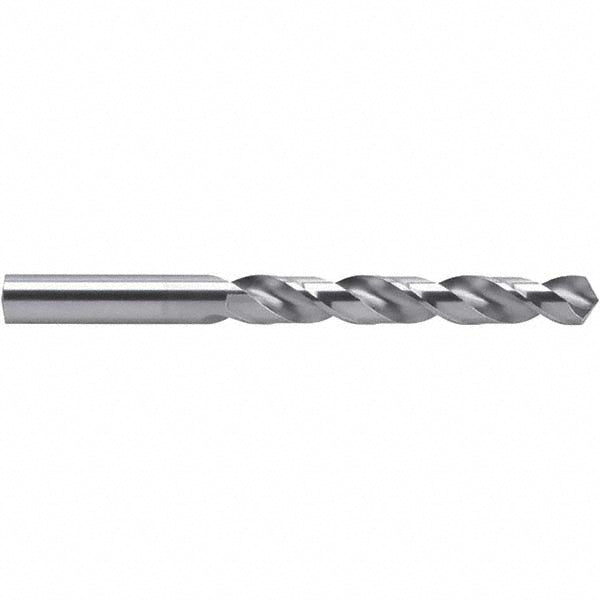

#17 Cobalt Drill Bit, 118° point - Guhring 9055230043900
MFR# 9055230043900Series 5523
$6.37List $8.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055230043900 is a #17 Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit materialCobalt
Drill bit size0.1730
Drill bit size range0.1500 - 0.2000
Drill bit size wire#17
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)47.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.5910
Number of flutes2
Overall length (mm)80.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter (mm)4.39
Shank length (mm)33.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
