Guhring
Letter Q Cobalt Drill Bit, 118° point - Guhring 9055230084300
MFR# 9055230084300Series 5523
$16.71List $21.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

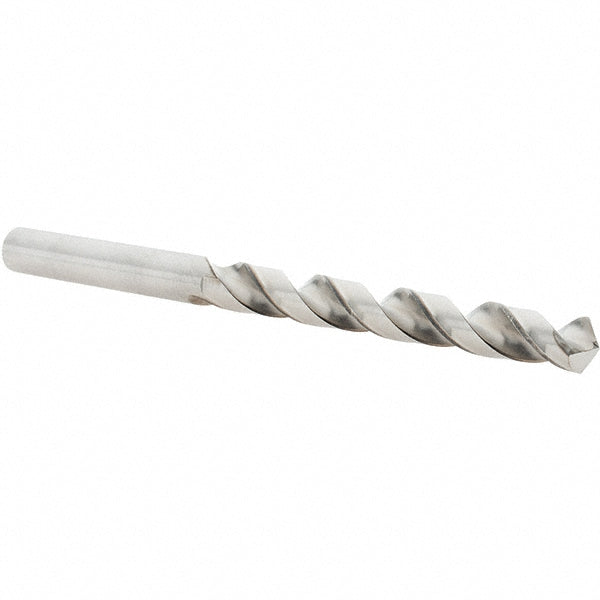

The Guhring 9055230084300 is a Letter Q Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialCobalt
Drill bit size0.3320
Drill bit size letterQ
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)75.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth2.4550
Number of flutes2
Overall length (mm)117.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter (mm)8.43
Shank length (mm)42.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
