Guhring
15/32" Cobalt Drill Bit, 118° point - Guhring 9055230119100
MFR# 9055230119100Series 5523
$36.13List $46.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
Flutes2
Description

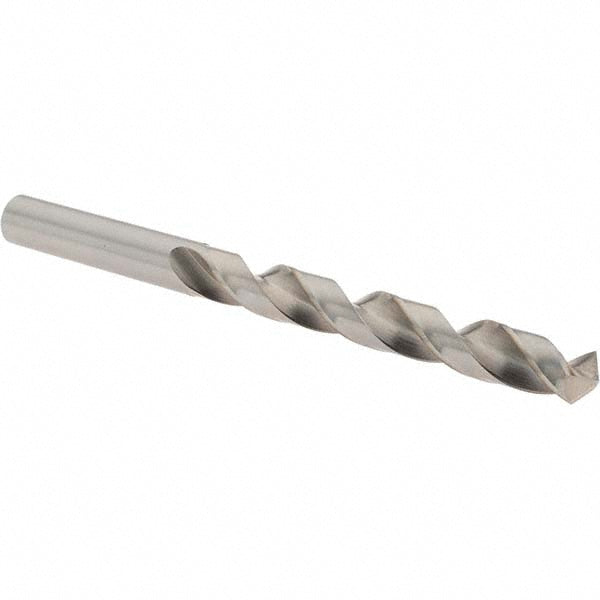

The Guhring 9055230119100 is a 15/32" Cobalt drill bit, 118° point. Suited for aluminum. Series 5523.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialCobalt
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)101.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth3.2730
Number of flutes2
Overall length (mm)151.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter in15/32
Shank length (mm)50.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
