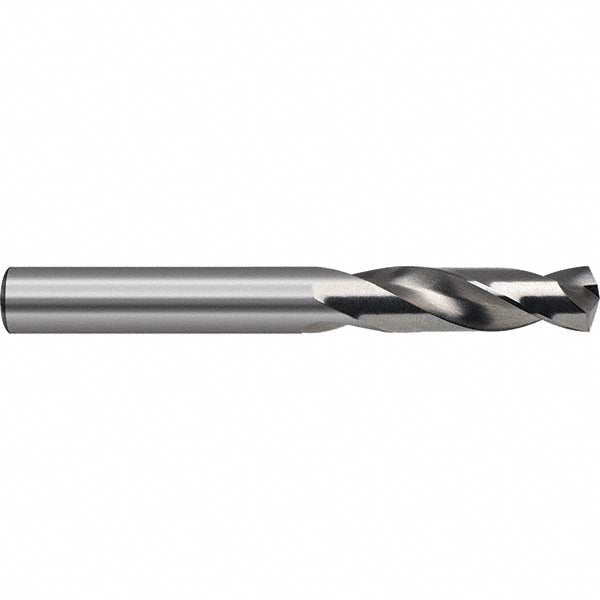

#47 Cobalt Stub Drill Bit, 118° point - Guhring 9055240019900
MFR# 9055240019900Series 5524
$3.11List $3.98
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055240019900 is a #47 Cobalt Stub drill bit, 118° point. Suited for aluminum. Series 5524.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.0785
Drill bit size range0.0000 to 0.1000
Drill bit size wire#47
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)12.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth0.3550
Number of flutes2
Overall length1.4961
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter0.0783
Shank length1.0236
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
