Guhring

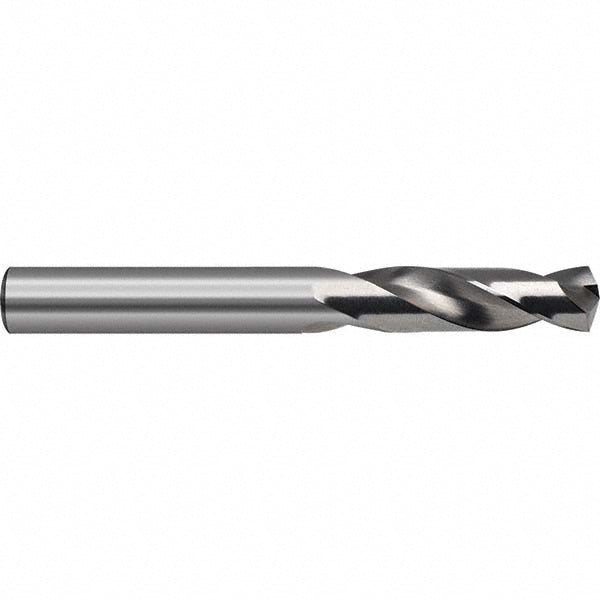

0.1063" Cobalt Stub Drill Bit, 118° point - Guhring 9055240027000
MFR# 9055240027000Series 5524
$3.94List $5.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055240027000 is a 0.1063" Cobalt Stub drill bit, 118° point. Suited for aluminum. Series 5524.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.1063
Drill bit size range0.1000 to 0.1500
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)16.00
Flute typeSpiral
Maximum drilling depth0.4700
Number of flutes2
Overall length1.811
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter0.1063
Shank length1.1811
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
