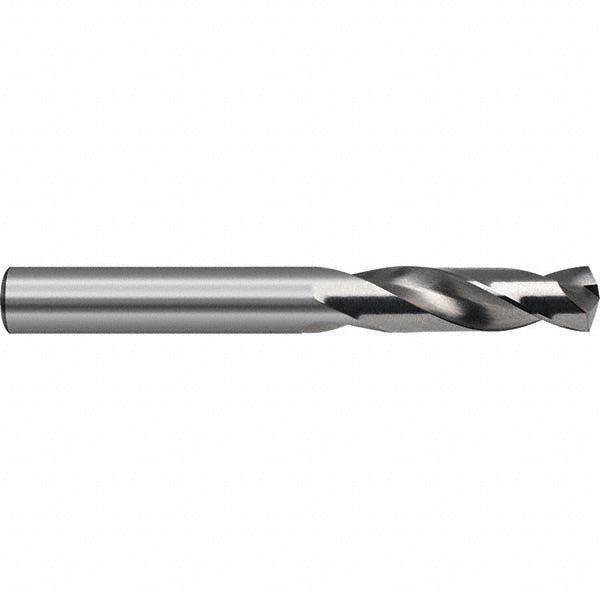

#19 Cobalt Stub Drill Bit, 118° point - Guhring 9055240042200
MFR# 9055240042200Series 5524
$4.53List $5.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055240042200 is a #19 Cobalt Stub drill bit, 118° point. Suited for aluminum. Series 5524.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit size0.1660
Drill bit size range0.1500 to 0.2000
Drill bit size wire#19
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)22.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth0.6170
Number of flutes2
Overall length2.1654
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter0.1661
Shank length1.2992
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
