Guhring

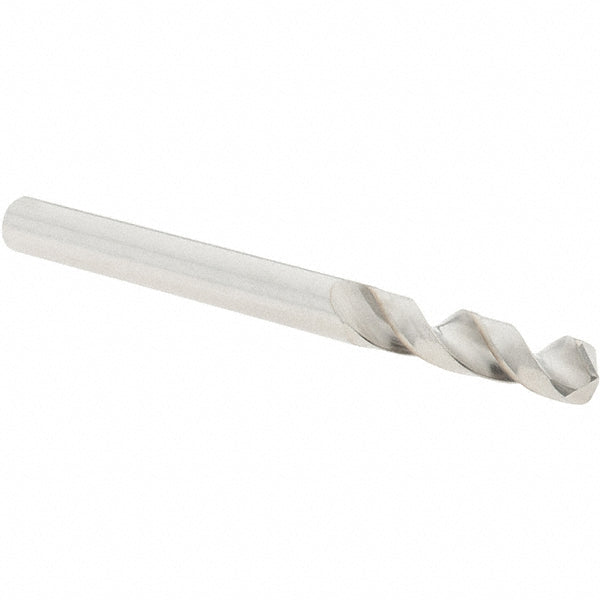

#9 Cobalt Stub Drill Bit, 118° point - Guhring 9055240049800
MFR# 9055240049800Series 5524
$5.81List $7.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9055240049800 is a #9 Cobalt Stub drill bit, 118° point. Suited for aluminum. Series 5524.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit size0.1960
Drill bit size range0.1500 to 0.2000
Drill bit size wire#9
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)26.00
Flute typeSpiral
Material gradeM35
Maximum drilling depth0.7300
Number of flutes2
Overall length (mm)62.00
Point typeFour Facet; Split
Primary workpiece materialAluminum
Shank diameter (mm)4.98
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
